Radium Engineering Fuel Hanger EVO X Fits Deatschwerks DW400 - 20-1644
COMPATIBILITY
- 08-15 Mitsubishi Lancer Evolution X
COMPATIBLE PUMPS
There will be enough components included with this option to use 1 or 2 fuel pumps. Depending on the setup, some parts will simply not be used. This system is compatible with the following fuel pumps:
- Deatschwerks DW400
OVERVIEW
SPECS & FEATURES
- 8AN ORB Female Pump-Out Port
- 6AN ORB Female Return Port
- Collector Box with 1-Way Fill Valve
- Venturi Jet Pump Siphon
- Single Merged Fuel Pump Outlet
- High Current Electrical Connections
- Black Anodized Adapter Fittings
- Fuel Level and Temp Sensor Mount
- Twin Fuel Pump Compatibility
- Stainless Hardware and Clamps
- Anti-Rotation Stainless Terminals
- Alternative Fuel Compatibility
INSTALLATION NOTES
- Radium Engineering recommends upgrading the feed and return lines when using multiple pumps.
- There is an OEM pressure sensor (Mitsubishi 8651A025) found on the top hat to meet North American emission standards. For international vehicles that did not come with this standard, 20-0421 EVO X FUEL TANK PRESSURE PLUG is required.
- Single fuel pump installations can re-use the OEM fuel pump controller wiring.
- Radium recommends upgrading the wiring to ensure the pumps are operating at their full potential.
- This kit eliminates the OEM "post" fuel pump filter. A low-micron aftermarket fuel filter should be installed downstream to protect the injectors from debris.
INCLUDED

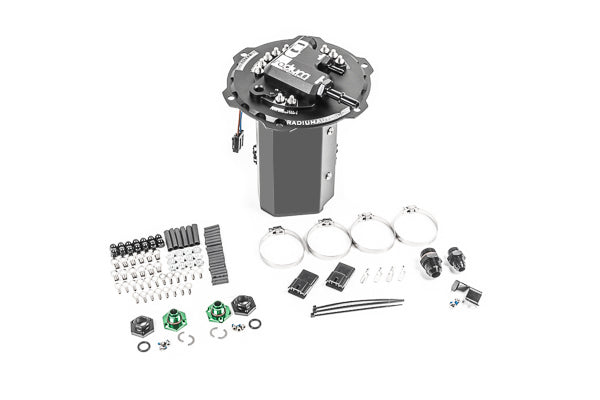

These fuel pump hangers come partially assembled and include all necessary components to install 1 or 2 compatible fuel pumps. They also include an electrical parts bag to assist with external wiring atop the hanger. Fuel pumps are sold separately.
Looking for more Radium? Check out the complete range HERE.
Looking for Radium Instructions? Find the complete list of instructions HERE.
