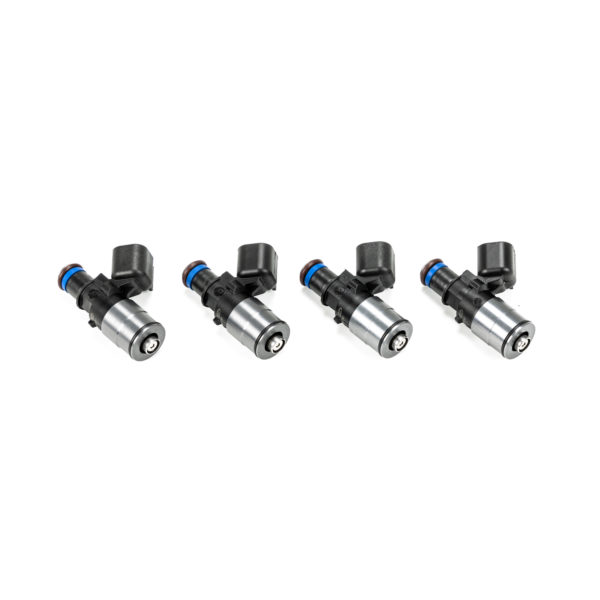

Injector Dynamics ID1050-XDS - 1065cc Fuel Injector - GR86 (2017+), BRZ (2013+) & FR-S (13-16) - 1050.18.04.36.11.4
ID1050-XDS, for GR86 (2017+), BRZ (2013+) & FR-S (13-16) / FA20 2.0L applications. 11mm machined top, WRX-16B bottom adapters. Set of 4.
The ID1050-XDS is the evolution of the ID1050x.
The ID1050-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths.
Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
Stronger magnetic circuit offers stable operation up to 10 bar.
Replaceable inlet filter extends service life.
Base Specifications
Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR
Click here for detailed technical information on the ID1050X
Click here to learn more about the nature and development of the X-Series injectors.
* Pricing is for a set of 4 injectors and includes plugs and pins
