Nexus IO16 Input/Output Expander with Plug and Pin Kit - HT-196100
Includes
IO16 and Connector Kit
Overview

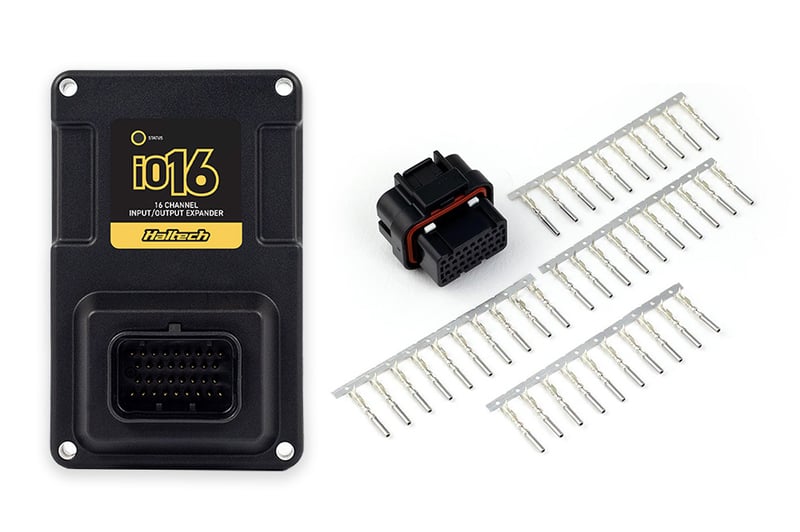

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.
Plug and Pin set compatible with Haltech Nexus products that use the Key 2 / 34 position connector.
Features
INPUTS
6 x Analogue Voltage Inputs (AVI)
0-5V readable range
Selectable 1k pull-up resistor to 5V
4 x Synchronised Pulsed Inputs (SPI)
Reluctor/Digital
0-5V readable range
Selectable 1k pull-up resistor to 5V
OUTPUTS
6 x Half Bridge Outputs (HBO)
8A current (sink/source)
Capable of 0-100% duty cycle
2.2khz switching speed
NOT suitable for DBW throttle application
WARNING - When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.
OTHERS
3 x 5V output (sensor power)
4 x Sensor ground
Note: Any 5V and sensor ground pins can be paired when wiring sensors.
