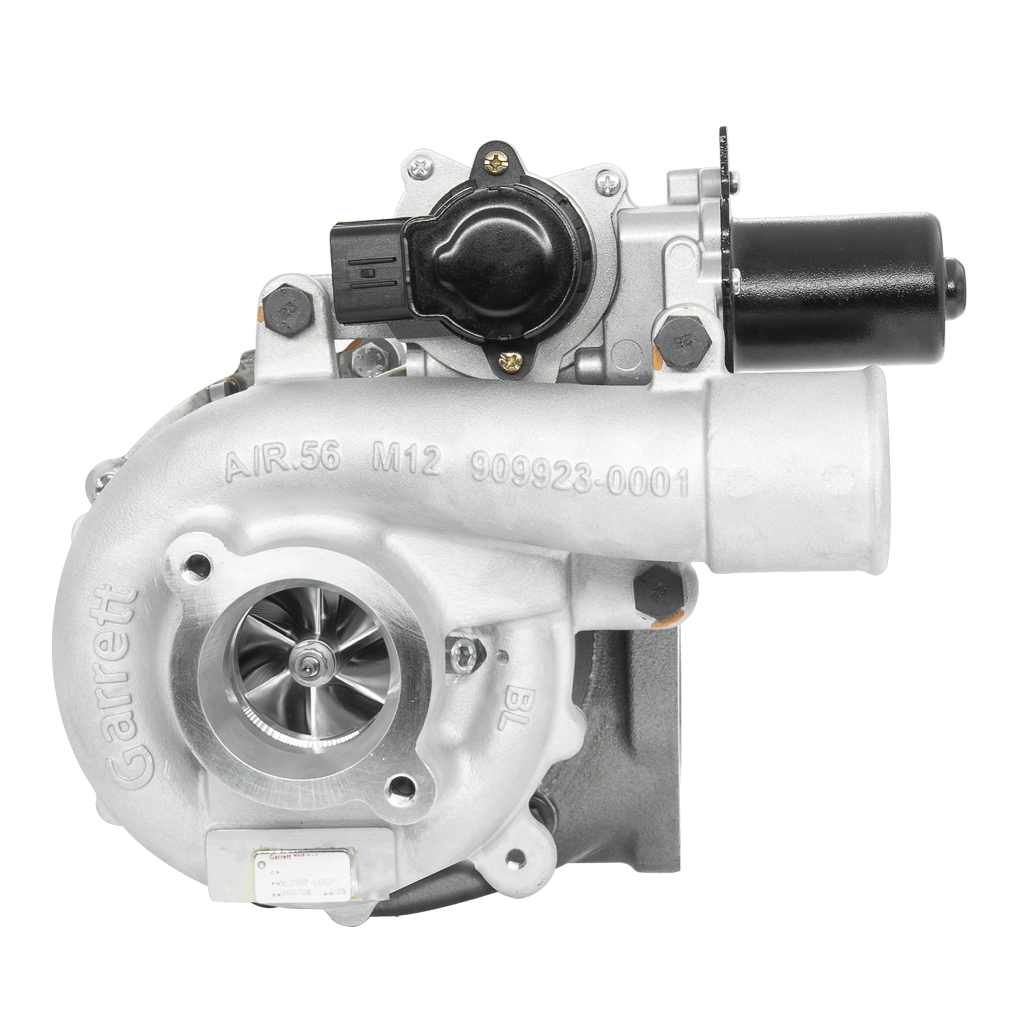

Garrett GTB2260V 2002-2016 Toyota Hilux 3.0L 1KD Diesel Turbo Upgrade
$1,791.99
POWERMAX DIRECT-FIT PERFORMANCE TURBOCHARGER
Toyota Hilux 3.0L 1KD Diesel (2002–2016)
Supports up to 265 BHP | 198 kW, with a +38% increase in power tested on-dyno compared to the OEM turbo, delivering improved performance potential while maintaining factory drivability.
Kit Part Number:
953907-5001S (2002-2016) Toyota Hilux
Key Product Features
- Direct-fit performance turbocharger for the Toyota Hilux 3.0L 1KD Diesel (2002 – 2016)
- Supports up to 265BHP | 198kW (+38% increase in power tested on-dyno compared to the OEM turbo)
- 70% increase in torque (550Nm from 320Nm tested on-dyno compared to the OEM turbo)
- Improved electric actuator assembly for increased durability
- Complete turbocharger assembly with calibrated electric actuator
- Fully machined speed sensor port to monitor turbo shaft speed: use PN 923586-0002 (G-Smart Bluetooth Module / App) or Speed Sensor Kit 781328-0001 (street kit w/ gauge) or 781328-0002 (pro kit w/o gauge)
- Engineered to OEM durability and quality standards
Why Choose Garrett
Trust the name that’s been powering innovation for over 70 years. Garrett PowerMax™ turbochargers are engineered with OEM precision and designed to deliver improved performance and response for daily drivers and spirited driving alike. With more than 130 million vehicles powered globally, Garrett delivers performance, reliability, and innovation you can trust.
Complete Turbocharger Assembly
The Garrett PowerMax™ direct-fit turbocharger for the Toyota Hilux and Toyota 120 Prado is engineered as a complete, direct-fit replacement for the factory unit. Each assembly includes a calibrated actuator and matches the original OEM footprint, allowing reuse of factory mounting locations, oil and coolant connections, and intake and exhaust interfaces for straightforward installation.
PowerMax Turbocharger vs OEM Turbocharger
The Garrett PowerMax™ turbocharger is engineered as an OEM-plus upgrade, designed to retain factory fitment while increasing airflow and overall performance capability compared to the original equipment turbocharger.
| Feature | OEM Turbocharger | Garrett PowerMax™ Turbocharger |
|---|---|---|
| Fitment | Factory-installed | Direct-fit OEM replacement |
| Installation | Factory | Bolt-on, no fabrication required |
| Airflow | OEM-rated | Increased compressor flow |
| Power Capability | OEM output | Supports higher power potential |
| Turbo Assembly | OEM configuration | Complete upgraded assembly |
| Actuator | OEM | Included, calibrated actuator |
| Drivability | OEM | OEM-like drivability retained |
| Reliability | OEM durability | OEM-engineered for increased performance |
Performance Capability Explained
The horsepower capability referenced for this turbocharger is based on laboratory compressor flow testing and represents the total performance capability of the turbocharger itself. Actual performance results will vary depending on vehicle configuration, supporting modifications, and ECU tuning or calibration.
Turbo Speed Monitoring
This PowerMax™ turbocharger features a fully machined turbo speed sensor port. Monitoring turbocharger shaft speed is recommended to help prevent overspeed and protect long-term durability, especially when operating at higher performance levels. Compatible speed sensor kits are available separately. Use PN 923586-0002 (G-Smart Bluetooth Module / App) or Speed Sensor Kit 781328-0001 (street kit w/ gauge) or 781328-0002 (pro kit w/o gauge)
| Kit Part Number | Application Description | Engine | Power | Model | Comp Ind | Comp Exd | Turb Ind | Turb Exd |
|---|---|---|---|---|---|---|---|---|
| 953907-5001S
|
2002-2016 Toyota Hilux
|
3.0L 1KD Diesel | 265 BHP | 198 kW | GTB2260V | 42.4 mm | 61 mm | 50 mm | 45 mm |
For more information click HERE
