Davies Craig Digital Thermatic Fan Switch - Gen II - DC0480

Digital Thermatic^® Fan Switch - GEN II

12 & 24 Volt | Part Number: 0480

(Supersedes Part No. 0444)

Upgrade your cooling control with the latest GEN II Digital Thermatic^® Fan Switch, redesigned for improved usability, durability, and performance. Built for precision temperature management, this next-generation controller delivers smarter fan operation and enhanced installation flexibility.

What’s New vs Part No. 0444

• Improved Display & Layout
  • Larger, clearer LED display with °C / °F units
  • LED repositioned for better visibility
  • All wiring relocated to the rear for cleaner, easier installation
• Faster Dual Fan Operation
  • Second fan start-up delay reduced to 5 seconds for improved cooling response
• Advanced Override Control
  • Dual manual override wires for independent fan control
  • Selectable override signal polarity (positive or negative)
• Enhanced Durability
  • Upgraded to IP67 rating for superior water and dust protection
• Expanded Temperature Range
  • Adjustable from 5°C to 110°C (41°F to 230°F)

Key Features

• Digital temperature control with easy push-button adjustment
• Dual relay outputs for independent fan operation
• Automatic fan staging for efficient cooling
• Memory retention of temperature settings
• Compatible with both temperature probe and thermal sensor setups
• Suitable for 12V systems (24V compatible with relay change, part #10534, sold separately)

How It Works

• Fan 1 activates at your set temperature
• Fan 2 activates 5 seconds later for staged cooling
• Both fans switch off once temperature drops 5°C below set point

Installation Flexibility

• Radiator probe mounting or direct coolant measurement options
• Inline adapter compatibility for hose installation

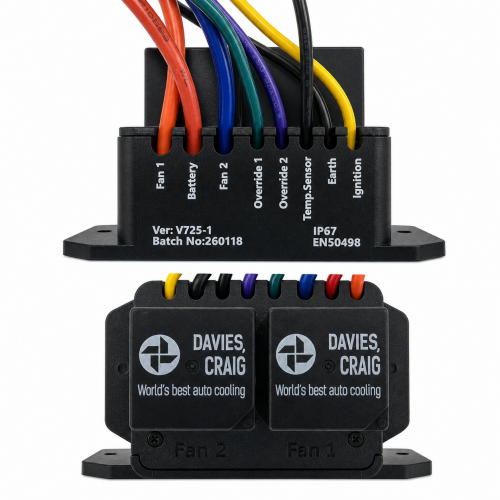

• Simple wiring with clearly labelled connections (battery, ignition, fan outputs, overrides)

(Refer to installation diagrams and wiring layout shown on page 3 of the instructions for full setup guidance.)

Specifications

• Voltage: 12V (24V compatible with relay change)
• Temperature Range: 5°C – 110°C (41°F – 230°F)
• Continuous Current: 30A (40A max)
• Start-Up Current: 60A
• Protection Rating: IP67

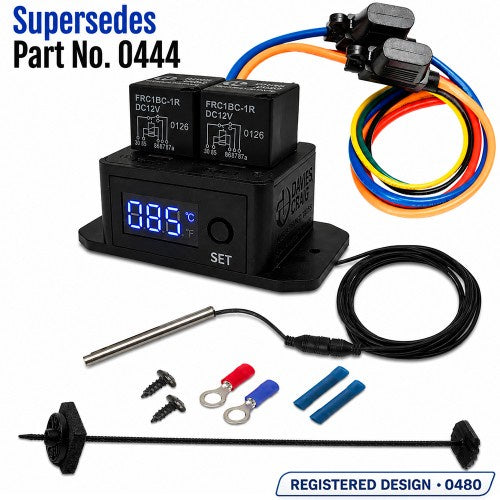

What’s Included

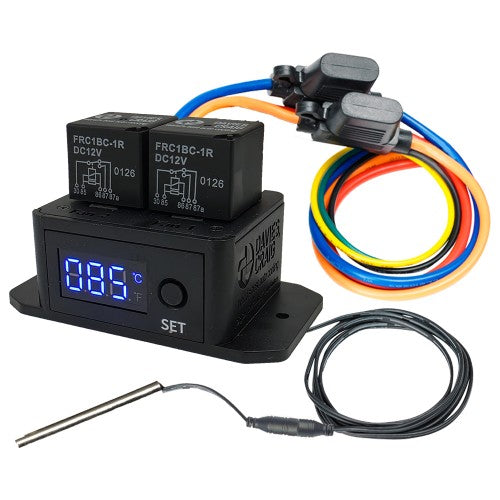

• 1 x Digital Thermatic^® Fan Switch GEN II
• 1 x Temperature Probe
• 1 x Mounting Kit Temperature Probe
• 1 x Red Ring Terminal
• 1 x Blue Ring Terminal
• 2 x Blue Wire Joiner
• 2 x Self Tap Screws
• 1 x Instructions


(Kit contents may vary slightly depending on variant – see page 1 of instructions.)

Why Upgrade?

The GEN II isn’t just an update—it’s a complete usability and performance improvement over Part No. 0444. With smarter control, faster response, and a more installer-friendly design, it delivers everything needed for modern cooling systems.

Registered Design:

The Digital Thermatic^® Fan Switch (Part No. 0480) and associated design variations are protected by Registered Design rights. Unauthorised reproduction or imitation is prohibited.
