Radium Engineering Dual Pump Add-On 90-05 NSX Walbro F90000267/274/285 - 20-2797
20-2797 Dual Pump Add-On Fits Walbro F90000267/274/285

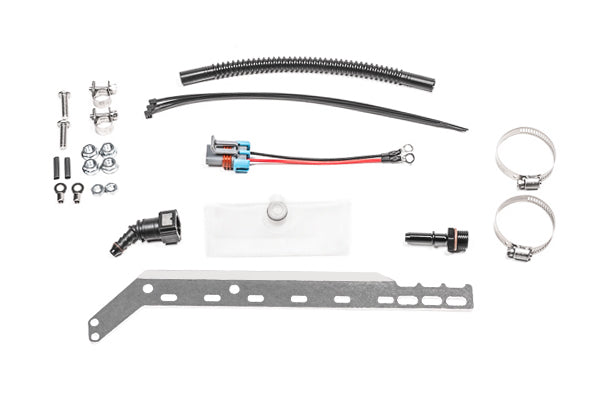

Use this kit to add a second fuel pump to the 20-2792 Fuel Pump Hanger (required). This is not compatible with brushless pumps as multiple pumps can not be installed when using a brushless pump.
The architecture of this fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time.
The pump 2 assembly is placed in the tank first followed by the pump 1 assembly. An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves, fuel pump staging is permitted.
PUMP COMPATIBILITY
Walbro F90000267(1)
Walbro F90000274(1)
Walbro F90000285(1)
Walbro F90000295(1)(3)
(1)Sock filters are included in this kit for these pumps.
(3)These pumps do NOT feature a check valve.
FEATURES
- Gasoline, Methanol, and E85 Compliant
- Compatible with Various Pumps
- Included Fuel Pump Filter Sock
- Plug and Play Installation
- Bolt-On Stainless Pump Bracket
