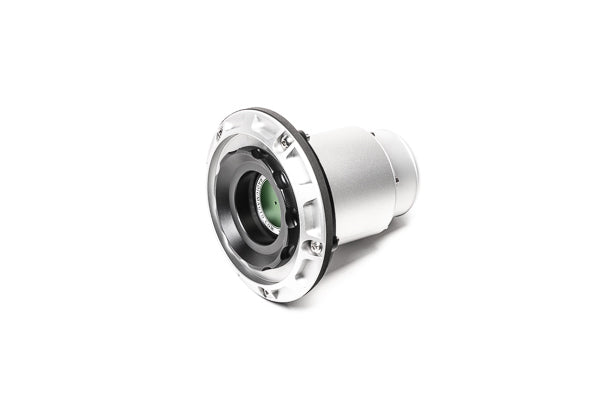

Radium Engineering Remote Mount Vented Female Dry Break 2.25in - 20-1204-V
Radium Engineering Remote Mount Vented Female Dry Break 2.25in
Designed for remote mounting to an external surface such as a fender. Requires a 77mm (3.03") hole to be fabricated. Includes 20-0549-V Dry Break, 1.5in, Female, Vented as well as a gasket, stainless steel hardware, an aluminum housing and aluminum nut ring. The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).
The fill neck has a machined hose barb connection for 2.25in filler hose. The outer diameter is 4.75in and uses 4.25in P.C.D for the five M5 bolts. Total height is 4.1in. Requires a 77mm (3.03in) hole to be fabricated
Specifications:
Filler Hose Requirement: 2.25"
Flange Outer Diameter: 4.75"
Bolt Circle Diameter: 4.25" PCD
Height: 4.08" (Dry Break to Barb)
Mate: 20-0496 Dry Break, 1.5in, Male
