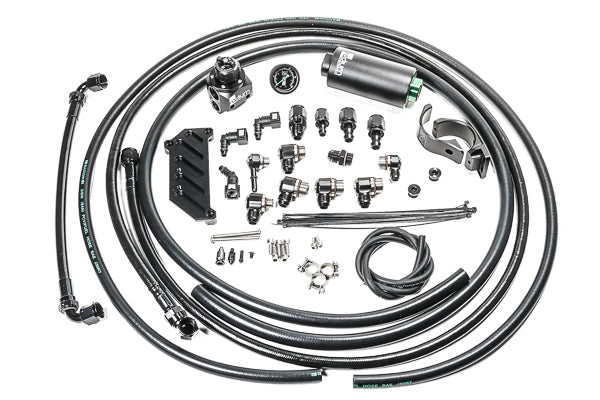

Radium Engineering Fuel Hanger Plumbing Kit 89-05 Mazda MX-5 Microglass Filter - 20-1025-05
Radium Engineering Mazda MX5 Fuel fuel hanger Microglass Filter Plumbing kit
VEHICLE COMPATIBILITY
89-05 Mazda MX-5
A large 8AN feed line runs around the backside of the fuel tank. This line mates to a new high flow fuel filter mounted in the OEM location using a billet mount, as shown below. A 10 micron stainless steel (-03) or a 6 micron microglass (-05) element is used depending on the kit selected.
An 8AN PTFE fuel line runs from the fuel filter along that factory hard lines, as shown below.
This 8AN PTFE line feeds the RA-series fuel pressure regulator (FPR) mounted under the RH strut tower. From the FPR, an 8AN PTFE fuel line feeds the front port of a dead head aftermarket fuel rail (not included). The Mazda 1.6L B6 Fuel Rail or Mazda 1.8L BP Fuel Rail are sold separately.
The OEM fuel feed line is repurposed as a high flow return line. The OEM fuel line connects directly to the FPR return fitting.
