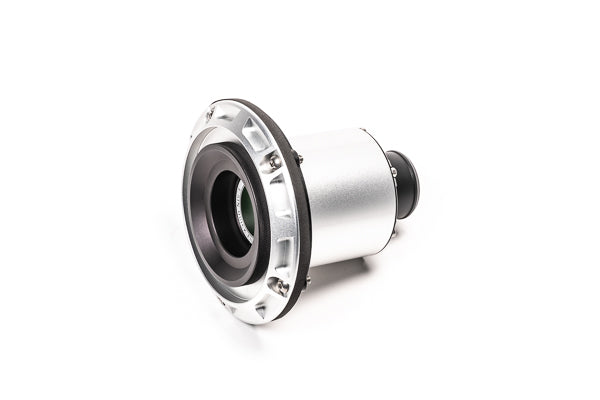

Radium Engineering Remote Mount Vented Female Dry Break 1.5in - 20-1004-V
Radium Engineering Remote Mount Vented Female Dry Break 1.5in
Designed for remote mounting to an external surface such as a fender. Requires a 77mm (3.03") hole to be fabricated. Includes a 1.5in female dry break as well as a gasket, stainless steel hardware, an aluminum housing and aluminum nut ring. The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).
The o-ring sealed 1.5" barbed outlet is interchangeable.
By simply removing 6 screws, a different outlet adapter (sold separately) can be installed.
Specifications:
Filler Hose Requirement: 1.5"
Flange Outer Diameter: 4.75"
Bolt Circle Diameter: 4.25" PCD
Height: 4.08" (Dry Break to Barb)
Mate: 20-0496 Dry Break, 1.5in, Male
