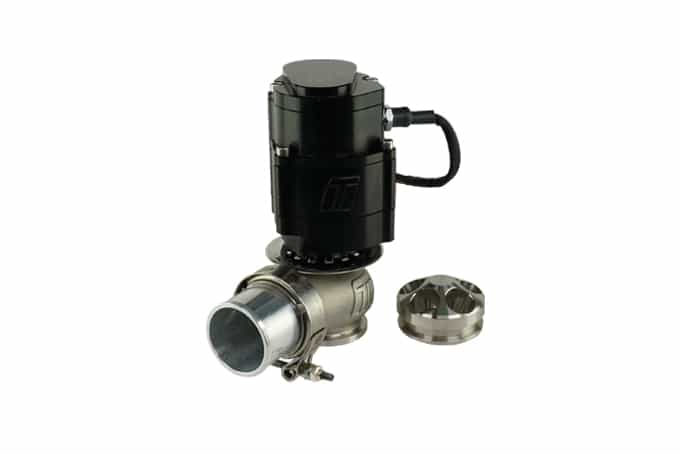

Turbosmart GenV eALV40 Electronic Anti-Lag Valve - TS-0552-1601
The fresh air valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.
Don't have an ECU that has a spare Dual Half-Bridge Output? No problem at all, checkout the Turbosmart BlackBox Electronic Wastegate Controller with up to 2 independant channels via simple PWM inputs, or more advanced CAN based inputs - All onboard & in the one unit!
Available in
Pneumatic: TS-0552-1402
Electronic: TS-0552-1502
Features
Nitronic 60 Valve Guide & High Temp 347 SS Body
Liquid Cooled, Electronic ACtuator
Strap Type V-ban clamps
User Adjustable Actuator Position
Onboard Analog 0-5V Valve Position Sensor
Onboard Analog 0-5V Actuator Temperature Sensor
Onboard Digital (PWM) Valve Position Sensor
SUPPLIED WITH
GenV eALV40 Electronic Anti-Lag Valve
Un-Terminated Flying Lead
Valve Seat
Inlet & Outlet V-band Clamp
Inlet Hose Adapter 1-1/2" (38.1mm)OD
C Spanner / Collar Tool
Inlet O-ring
Turbosmart Decal
