Radium Engineering Fuel Rails, Subaru EG33 - 20-0763-02
COMPATIBILITY

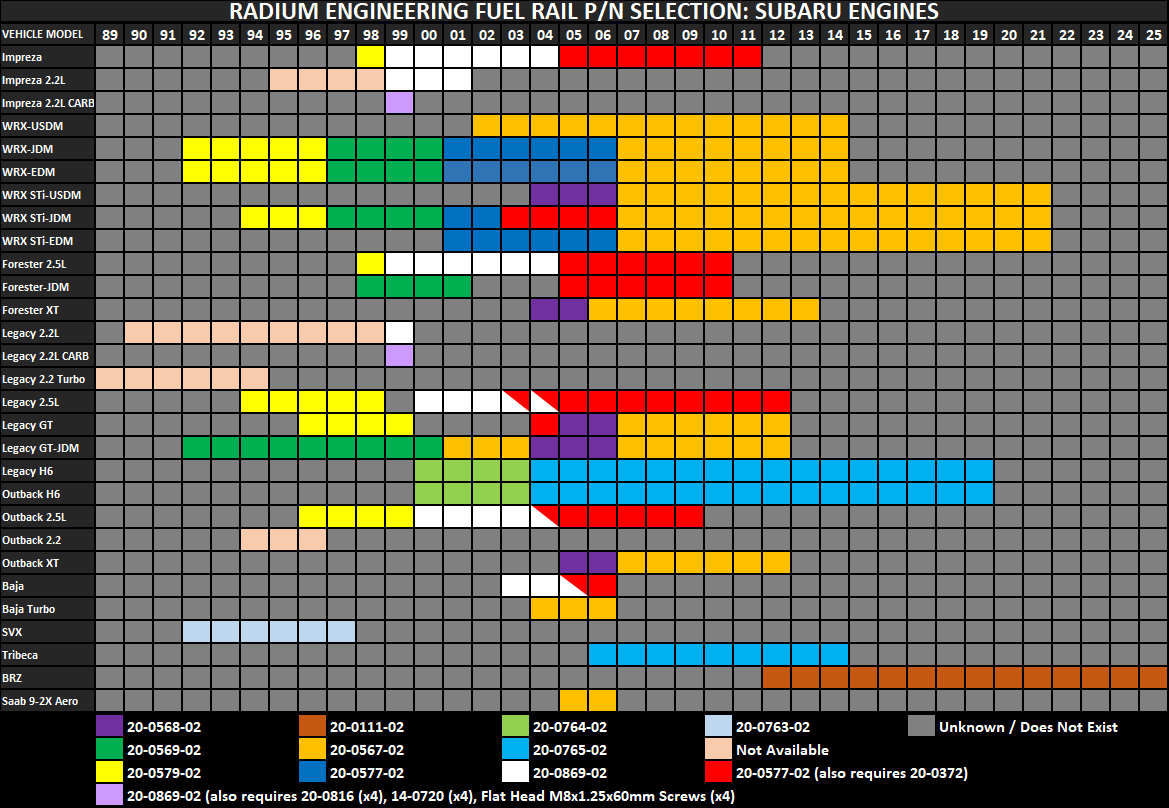

Reference the chart below to be sure the proper fuel rails are ordered.
20-0763-02 FUEL RAILS, TOP FEED CONVERSION, SUBARU EG33
- Subaru Alcyone SVX
20-0763-02 FUEL RAILS, TOP FEED CONVERSION, SUBARU EG33

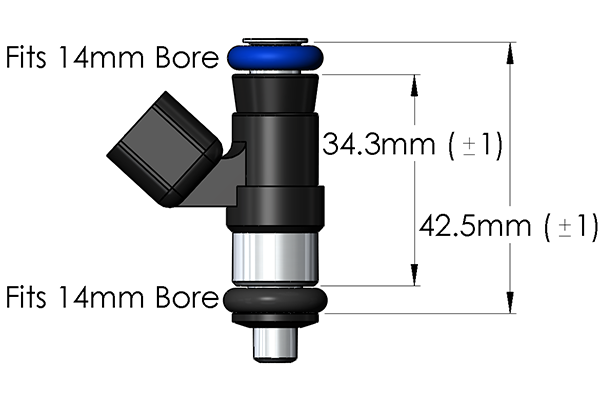

Do NOT purchase "WRX top feed" injectors. These rails require a universal fuel injector. Compatible fuel injectors must have 14mm O-rings top and bottom and must match the 34mm height dimensions shown below.
Many injector manufacturers will have applications with these dimensions. Here are a few examples of applicable injector part number from Injector Dynamics:
- Injector Dynamics ID1050-XDS 1050.34.14.14
- Injector Dynamics ID1300-XDS 1300.34.14.14
- Injector Dynamics ID1700-XDS 1700.34.14.14
- Injector Dynamics ID2600-XDS 2600.34.14.14
Fuel Injectors are NOT included.
OVERVIEW
Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser etched for a high quality surface finish.
For injector height flexibility and thermal insulation, machined insulating spacers are included. Reference instruction manual for more information. The fuel rails are compatible with all fuel types including popular alcohol mixtures such as E85.
20-0763-02 FUEL RAILS, TOP FEED CONVERSION, SUBARU EG33
The EG33 H-6 engine is found in the Subaru Alcyone SVX. Each fuel rail features three 8AN ORB threaded ports (6 total).
20-0763-02 FUEL RAILS, TOP FEED CONVERSION, SUBARU EG33
- Black Anodized Laser Etched Aluminum Fuel Rails
- Black Anodized and Laser Etched 26mm Injector Seats
- Black Anodized Fuel Rail Mounts
- Stainless Steel Mounting Hardware
