Radium Engineering Mitsubishi EVO 1-6 Fuel Pump Hanger Plumbing Kit - Stainless Filter - 20-1334-03
COMPATIBILITY
20-1334-03 Fuel Hanger Plumbing Kits, Mitsubishi EVO 1-6
- Mitsubishi Evolution I
- Mitsubishi Evolution II
- Mitsubishi Evolution III
- Mitsubishi Evolution IV
- Mitsubishi Evolution V
- Mitsubishi Evolution VI
Requires Fuel Hanger Connection Kit
COMPATIBLE PUMPS
- AEM 50-1220
- Walbro F90000267
- Walbro F90000274
- Walbro F90000285
- Walbro F90000295
- Protec 11928 (brushless)
- Fuelab 49614 (brushless)
- Deatschwerks DW400
- Deatschwerks DW440 (brushless)
- Deatschwerks DW810 (brushless)
OVERVIEW
20-1334-03 Fuel Hanger Plumbing Kit, Mitsubishi EVO 1-6
When used in conjunction with one of the fuel hanger connection kits (mentioned above), the fuel hanger plumbing kits provide all necessary connections for the fuel system. This only excludes the fuel rail and fuel injectors.
A long 8AN PTFE fuel line adapts at the rear of the vehicle to the 8AN PTFE fuel line in the fuel hanger connection kit. This new 8AN PTFE fuel line runs all the way up engine bay and mates to a Radium fuel filter mounted in the OEM location. The provided short 8AN PTFE fuel line routes from the fuel filter to the inlet of an aftermarket fuel rail (not included). A fuel pressure gauge and a Radium DMR mount to the fuel rail outlet. From here, a 6AN EFI hose route all the way back to the 6AN PTFE fuel line from the fuel hanger connection kit. All lines are secured using the included biller fuel brake line retainers.
SPECS & FEATURES
- Simple Drop-In Installation
- Aluminum and Stainless Construction
- Compatible with Various Pumps
- Brushless Fuel Pump Capable
- Anti-Rotation Electrical Terminals
- High Current Electrical Hardware
- Gas, Methanol, and E85 Compliant
INSTALLATION NOTES
- Installations can re-use the OEM fuel pump wiring.
- It is recommended to upgrade OEM wiring to ensure the pump is receiving full power and operating at maximum potential.

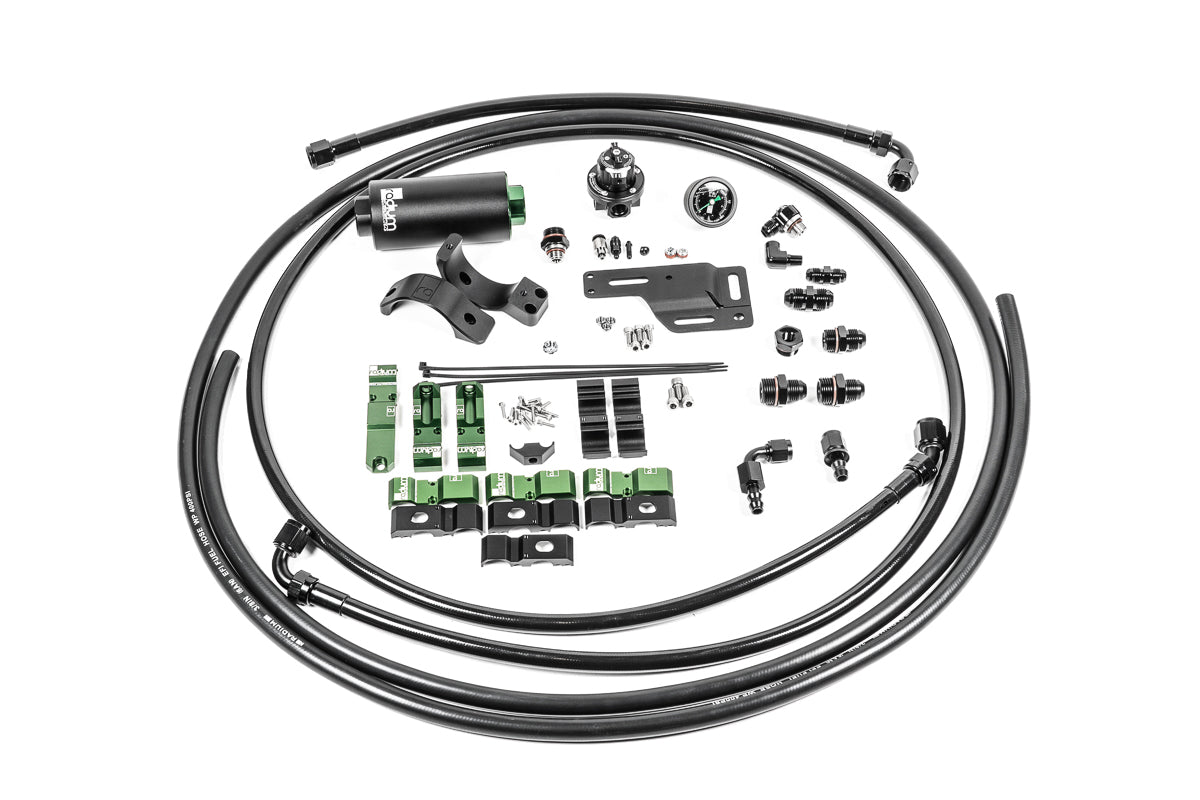

INCLUDED
20-1334-03 Fuel Hanger Plumbing Kit, Mitsubishi EVO 1-6
- Direct Mount Regulator
- 0-100psi Fuel Pressure Gauge
- Fuel Filter (-03 Stainless, -05 Microglass)
- Anodized Filter Mount and Clamps
- 8AN PTFE Fuel Feed Hose, Long
- 8AN PTFE Fuel Feed Hose, Short
- 6AN EFI Fuel Return Hose
- Stainless Steel Hardware
- Misc. Adapter Fittings
