Radium Engineering Fuel Filter Mount Cts-V - 20-1327
COMPATIBILITY
- 08-14 Cadillac CTS
- 08-15 Cadillac CTS-V
OVERVIEW
This filter mount includes all the hardware required for installing a Radium Engineering fuel filter in a Cadillac CTS. As shown below, the mounting bracket secures to the frame rail in the middle of the chassis on the RH side.
It uses factory holes so no permanent modifications are required. One half of the billet aluminum clamp secures to the bracket. The opposing half of the billet aluminum clamp secures the filter using stainless steel bolts.
The pictures show the Fuel Filter and 10AN ORB Fittings (both sold separately).
SPECS & FEATURES
- Mounts to Existing Holes in the Chassis
- No Permanent Modifications Required
- Anodized Aluminum Bracket
- Anodized Aluminum Clamps
- Clamp Diameter: 60mm (2.36")
- Stainless Steel Hardware
NCLUDED

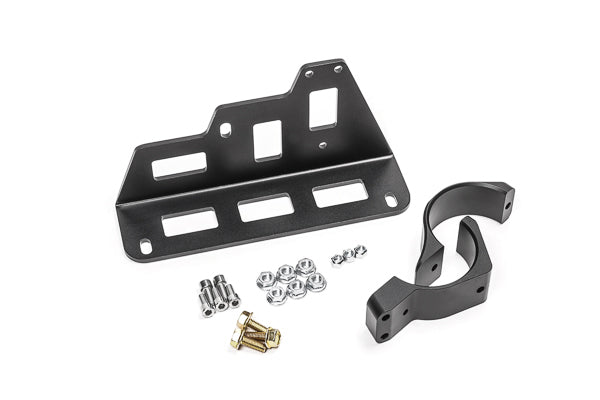

- Anodized aluminum mounting bracket
- Anodized aluminum fuel filter mount
- Stainless steel mounting hardware
NOTES
- Fuel filter not included
- Aftermarket fuel lines and fittings will need to be configured separately
- This clamp will also work with an external Bosch 0 580 254 044 fuel pump
