Radium Engineering 98-05 Mazda MX-5 Dual Catch Can Kit - 20-1338-FL
Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick. These kits include everything needed for a complete installation. The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. Furthermore, the closed system prevents unwanted oil vapors from entering into the cabin.
FEATURES
-Effectively raises the octane and increased engine performance from cleaner inlet air
-Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
-Excessive oil collection can be an indicator of a damaged engine.
-Lowers hydrocarbon emissions
-Capacity: 7 fluid ounces
This catch can mounts using OEM holes and integrate perfectly with the surrounding components. The anodized aluminum catch can bracket mounts behind the RH headlight. NOTE: Because of the room needed for flip-up head lights, these kits are not compatible with the 89-97 MX-5 Miata or Eunos Roadsters.
NOTE: THIS ADD-ON CANNOT BE INSTALLED WITHOUT 20-1336-FL CATCH CAN KIT
As shown below, the anodized aluminum catch can bracket mounts to the catch can bracket included with 20-1336-FL.
o retain factory functionality, the CCV catch can runs inline between the crankcase vent (CCV) port and the intake pipe. At low loads, this catch can experiences atmospheric pressure. However, when the engine is at high load (WOT), the catch can will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation throughout the intake system.

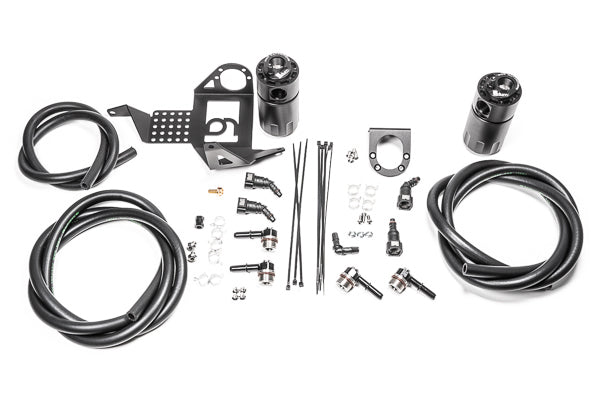

INCLUDES
-Baffled Fluid-Lock® oil catch can
-Anodized aluminum bracket
-SAE quick connect hose ends
-SAE quick connect fittings
-Stainless mounting hardware
-3/8" PCV rubber hose
-Cable zip-ties
-Spring clamps
