Radium Competition Catch Can L - 20-1772

For high powered engines, Radium Competition Catch Cans (CCC) have a much larger capacity than standard Radium catch cans. There is a large (L) and extra large (XL) version of the CCC. The XL CCC meets the common 1 quart minimum capacity requirements dictated by many organizing bodies including SCCA, NASA, Formula Drift, etc.

FEATURES

This new iteration of the competition catch cans, now possess the ability to plumb the crankcase system in 2 different manners; vent to atmosphere and vent to engine.

Vent to Atmosphere (VTA): Out of the box, the competition catch can is configured to vent to atmosphere. The giant non-restrictive outlet is over 183% larger than the inner diameter of the 10AN inlets. This increase in volume slows air flow allowing vapors to fall out of suspension. Additionally, contaminants are trapped with a diffuser permitting the oil sludge to fall back into the catch can. This prevents the concern excessive overspray accumulating in the engine bay.

20-1772 COMPETITION CATCH CAN, L

• HEIGHT: 6.3” / 160mm
• WEIGHT: 1.8 lbs (w/ all hardware)
• VOLUME: 0.625qt / 0.6L / 20floz
• INLET THREADS: 10AN ORB (7/8"-14)
• DRAIN THREADS: 4AN ORB (7/16"-20)
• OUTER DIAMETER: 3.45"

NOTES

• The lower half of the body simply unscrews for draining.
• The integrated dipstick unscrews for a quick way to check oil level.
• Some engines may require multiple catch cans depending on the PCV system design.
• Catch cans are NOT designed for aftermarket crankcase vacuum pumps.
• Sold without fittings.

Installation Instructions can be found HERE

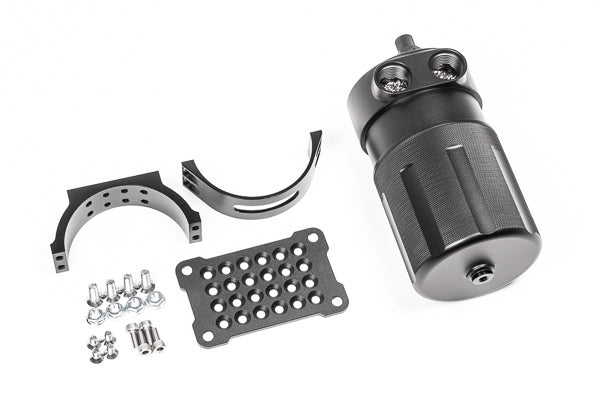

This competition catch can features two inlet -10AN ORB ports and vents to atmosphere out of the top. Billet aluminum construction. L version. Fully serviceable. 0.6L capacity. Mounting bracket included.

Installation Instructions can be found here.
