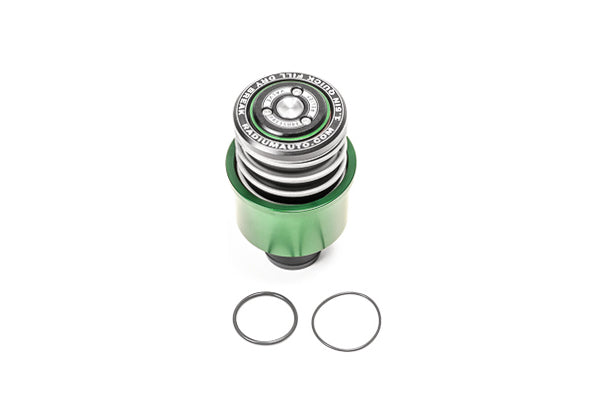

Radium Dry Break 1.5In Male PRV - 20-0996

• Universal
• Replacement for Radium dump can
• Adapt to quick fill dump cans with 1.5" ID hose

Dry breaks allow quick fuel filling with no mess. The male dry break probe connects to a dump can fuel jug and the female dry break receiver installs on the vehicle's fuel filler. When the two couplings mesh together, both valve seals open and close with synchronized timing permitting no fuel leaks. Furthermore, it is no longer necessary to monitor the filling process when the dry break is used in conjunction with the 20-0535 Radium DSV Valve as vented air flow is automatically shut down when full.

NOTE: Radium Engineering dry break systems are compatible with other dry breaks of the same size.

Designed to install onto the fill spout of a dump can fuel jug. Anodized aluminum construction with stainless steel hardware featuring a 1.5" OD barb. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). The new PRV (pressure relief valve) feature permits the sealed side of the dump can to be vented when exposed to warm temperatures. Simply push down on the center stainless steel valve to purge air pressure.

SPECS & FEATURES

• Filler Hose Requirement: 1.5"
• Mate: 20-0495-V, 20-0504-V, 20-0549-V

INCLUDED

• Dry break probe
• Aflas o-rings for methanol use
