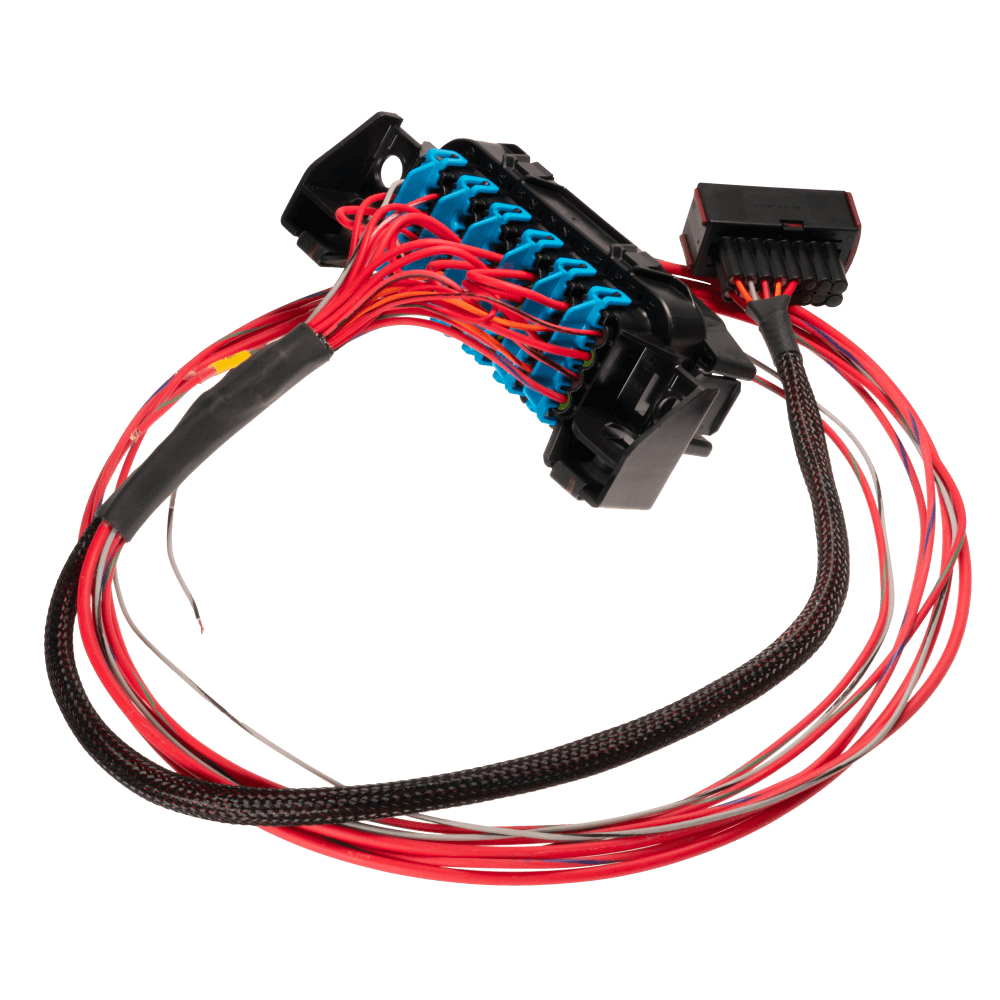

LS Harness - Fuse and Relay Box

• Highly recommended item to greatly simplify the wiring connections between the Link LS Terminated Engine Harness and the car chassis.
• When added to the Link LS harness the user only needs to connect 2 to 4 flying lead wires themselves to have a complete wiring system capable of running an engine - no special crimping tools, splicing or complex circuits required. The 4 connections are; Battery 12V, Ignition Switch, optionally Fuel pump and Cooling Fan.
• Provides fused power to all engine and ecu connected devices, takes care of the often complex "ecu hold power" wiring for models with stepper motor idle valves, provides 3** high current ecu controlled outputs for direct fuel pump and fan connection.
• Fully sealed high quality rugged Busman enclosure, IP67 rated.
• Made in USA with genuine high quality Song Chuan automotive relays, high temp TXL wire, ultrasonic welded splices.
• The 4 flying leads for connection to Battery, Ign switch, Fuel pump and Fan are 1500mm length, the main bundle that connects to the engine harness is 500mm length.
• See Terminated LS Engine Harness Manual linked below for connection details and further info.

Online Instruction Manual

**3 ECU controlled relays are available with DBW engines, only 2 ECU controlled relays are available with stepper motor IAC engines (intended to be Fuel pump and Fan supplies).
