HYBRID with V-BAND Mounting System

For Custom Weld-On Applications

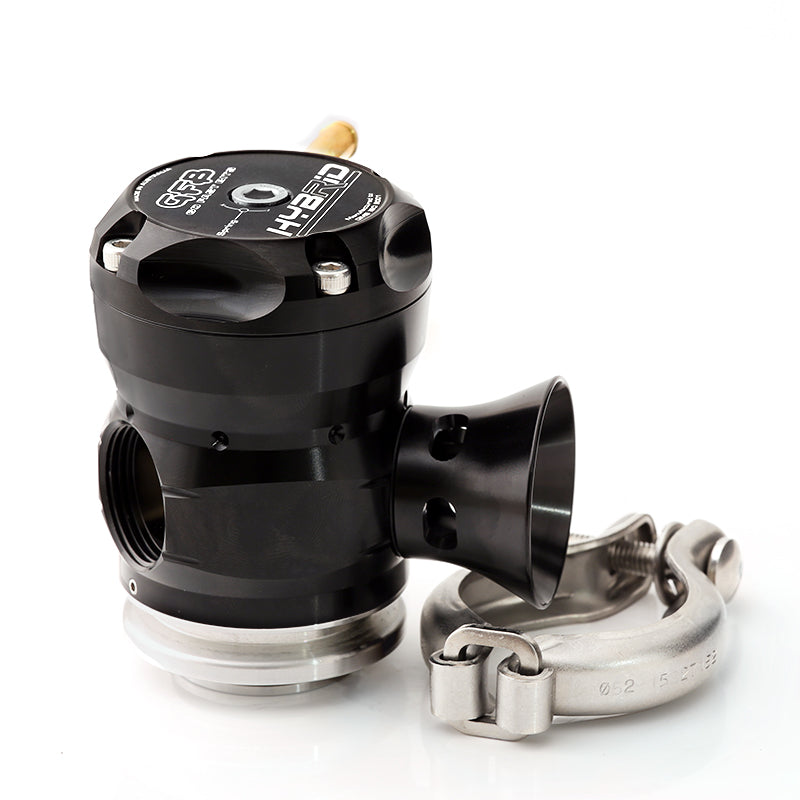

Using a v-band mounting system, the T9219 kit is the perfect option when you want a Hybrid valve that can be mounted directly to your aluminium or stainless intercooler piping.

NOTE: The T9219 kit comes with just the valve and v-band clamp. To finish the installation, you will need to purchase the appropriate weld-on flange and outlet fitting to suit your specific application. This saves you paying more for extra adaptors that you don’t end up using.

Weld on v-band flange materials available:

• 6061 Aluminium – part #5352
• 304 Stainless Steel – part # 5353

Outlets sizes available:

• 20mm – part # 5220
• 25mm – part # 5225
• 27mm – part # 5227
• 30mm – part # 5230
• 33mm – part # 5233
• 38mm – part # 5238

Hose plug sizes available (if you want to plug the recirc hose and vent the Hybrid 100% to atmosphere):

• 20mm – part # 5520
• 25mm – part # 5525
• 27mm – part # 5527
• 30mm – part # 5530
• 33mm – part # 5533
• 38mm – part # 5538
