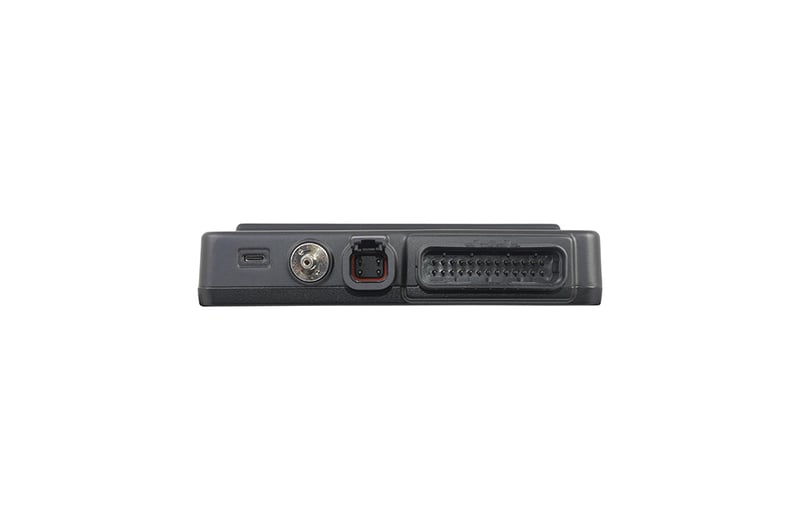

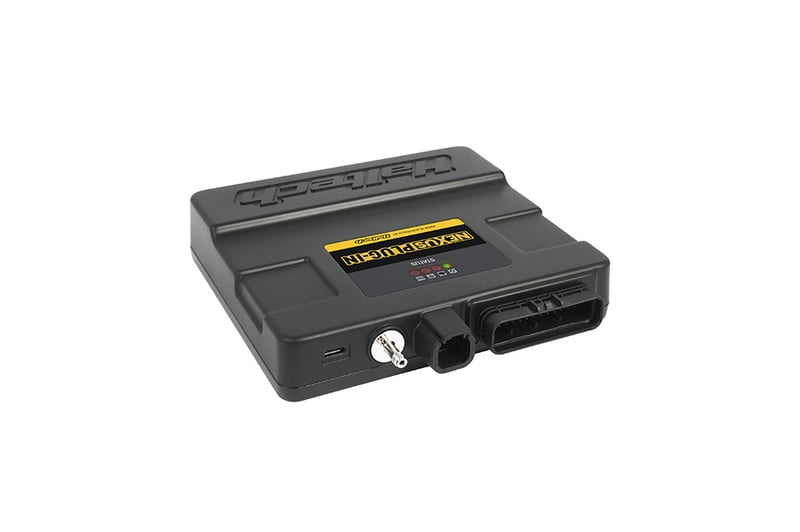

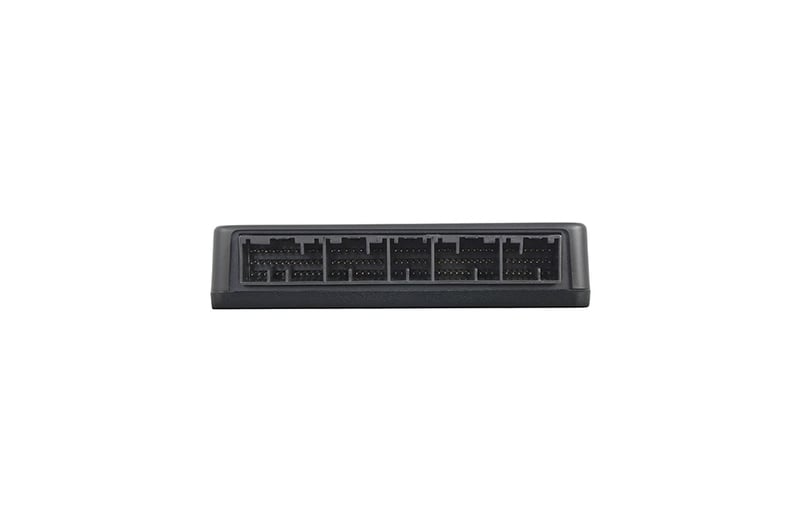

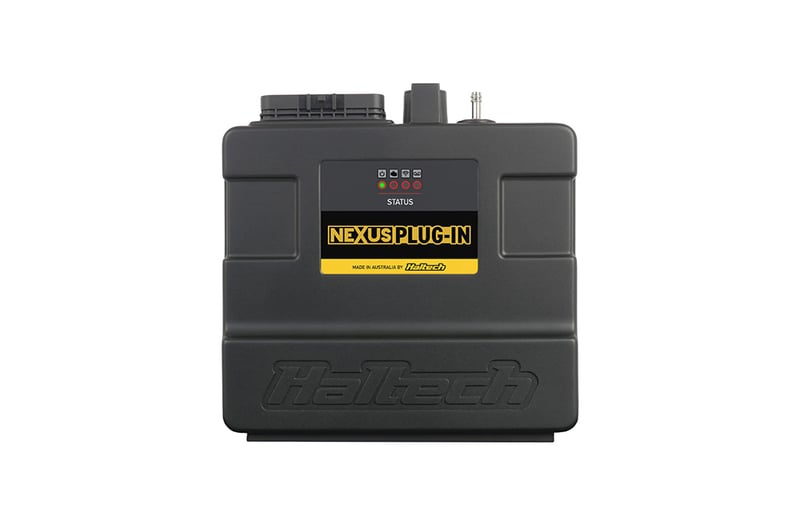

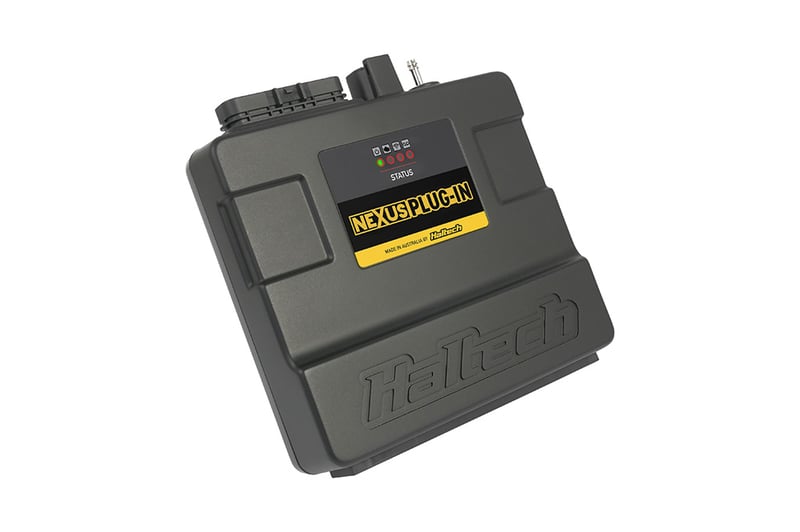

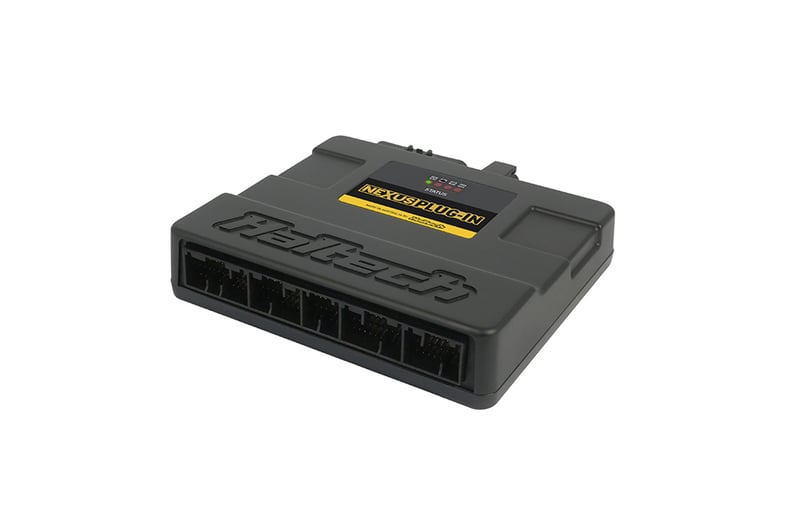

Haltech Nexus Plug-in ECU - Mazda RX-8 - HT-231401
- Nexus Plug-in Mazda RX-8 ECU
- Air temperature + Wideband expansion harness 2.5m (8')
- Air temperature sensor (1/8' NPT)
- Aluminium bung for air temperature sensor
- Mounting brackets and hardware to suit
- 3mm Vacuum hose 2.5m (8')
- 3mm Aluminium Vacuum T piece
- Haltech USB-C cable
- Quick start guide
- Drive By Wire Throttle Support
- Single Channel Onboard Wideband Control - Supports LSU4.9/NTK
- Wi-Fi
- 4 channel onboard oscilloscope
- Data logging 128MB
- Flex Fuel
- Closed Loop O2 Control
- Knock Control
- Long term learning
- 4 X Digital Pulsed Outputs
- 4 X Synchronised Pulsed Inputs
- 1 X Onboard Wideband
- 2 X Sensor Ground
- 2 x 12V Output
- 2 x 5V Output
- Drive-By-Wire / Electronic throttle
- Alternator control
- Cruise control switch
- Oil Metering Pump (OMP)
- Secondary Shutter Valve (SSV) solenoid
- Variable Dynamic Intake (VDI) solenoid
- Variable Fresh Air Duct (VFAD) solenoid
- Auxiliary Port Valves (APV) motor
- Electronic Power Steering
- DSC / Traction control
- Instrument cluster
- Rear O2 sensor (used as narrowband)
- ABS module (Note: Limited support. Currently we support the AUDM, JDM, USDM, and two different European versions of the ABS module. Other modules will have different CAN addressing.) ABS modules using K-line (instead of CAN) is not supported.
- Immobiliser light on dash (Note: We don't support the immobiliser, but the Haltech Plug-in ECU will still function and run the car regardless of the factory immobiliser and can prevent the immobiliser warning light from turning ON when the factory ECU is replaced.)
Suits: Mazda RX-8 Series 1 2003-2008, 13B-MSP Renesis 6-port (ADM, USDM, JDM, EUDM) Mazda RX-8 Series 1 2003-2008, 13B 4-port (JDM)

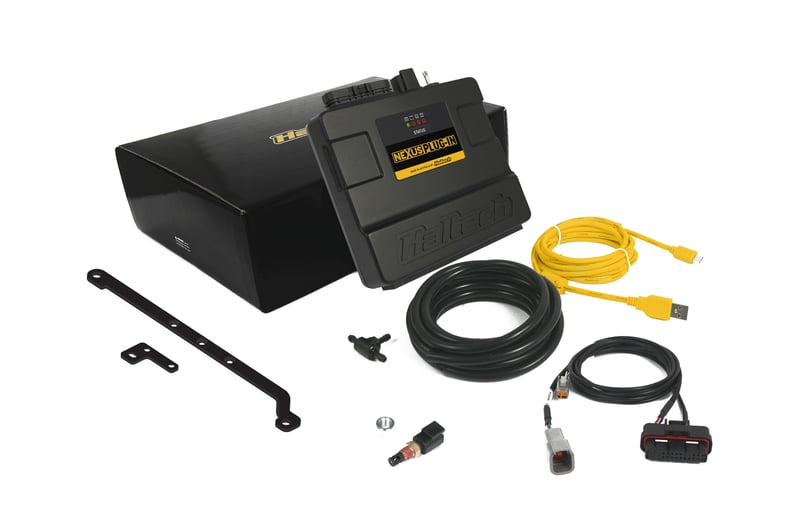

Includes: Nexus Plug-in ECU, Air temperature + Wideband expansion harness 2.5m (8') and spare pins, Air temperature sensor (1/8' NPT), Mounting hardware, vacuum hose, T-piece, USB cable, Quick Start Guide
Notes: Supports Manual Transmissions Only - Factory manual - 5 speed on 4-port, 6 speed on 6-port
Quickstart guide can be found here
