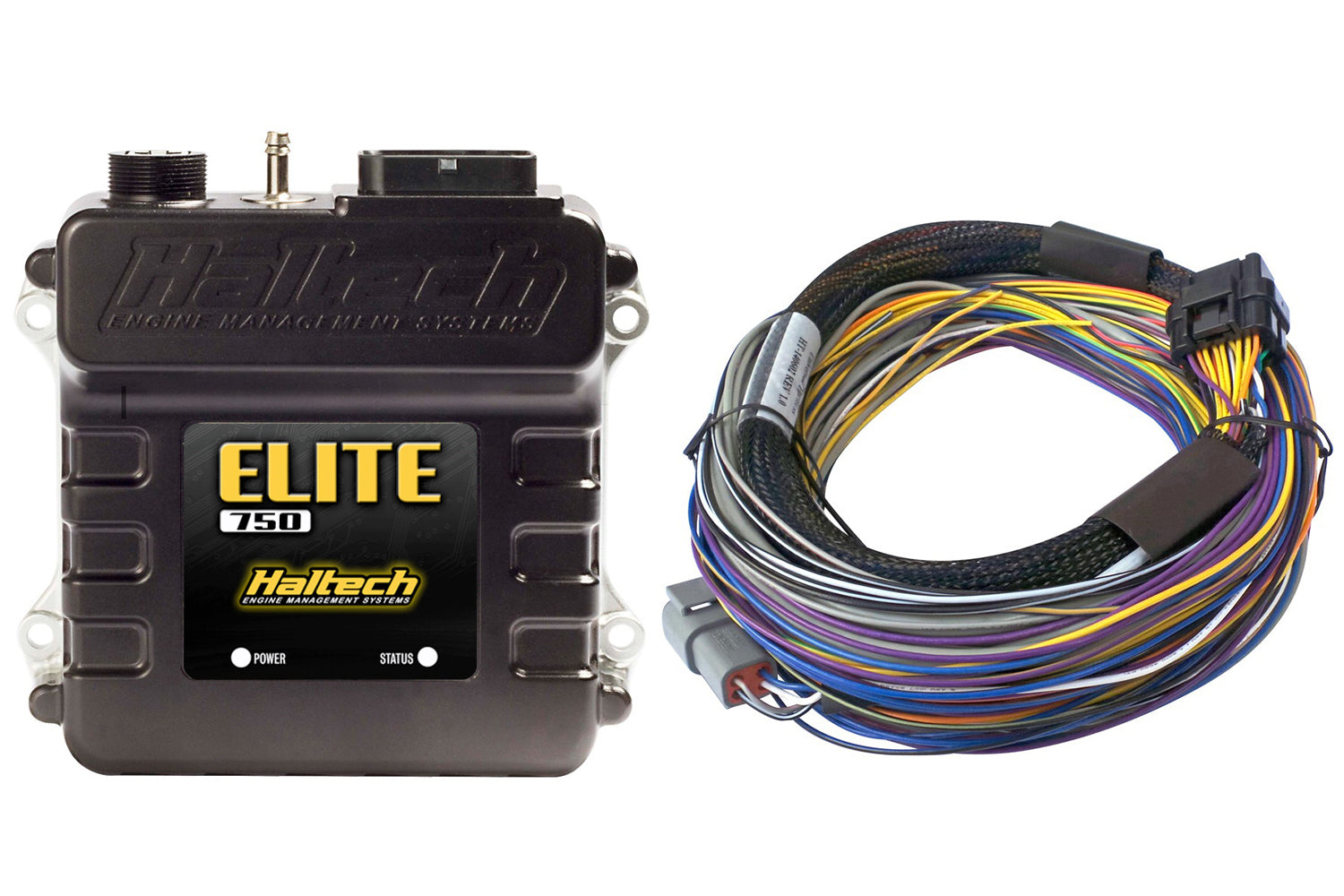

Haltech Elite 750 + Basic Universal Wire-in Harness Kit Length: 2.5m (8') - HT-150602
Haltech Elite 750 + Basic Universal Wire-in Harness Kit Length: 2.5m (8') - HT-150602
Outputs: Up to 6 injector and 6 ignition.
Outputs: Up to 6 injector and 6 ignition.
Suits: Universal 1-12 cylinder or 2-3 rotor applications.
Includes: Elite 750 ECU, Basic Universal Wire-In Harness. Waterproof USB cap, USB programming cable and software CD.
Notes: Single connector ECU kit ideal for basic 6 cylinder or 2 rotor engines, basic EFI conversions, single VVTi engines. Does not include fuse and relay box.
- Colour coded and labelled wires that match the detailed wiring diagram for a confusion free construction process.
- The wiring diagram is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
- Supports 1 to 8 Cylinder engines
- 1 to 3 Rotor engines
- Normally aspirated or forced induction
- Load sensing by Throttle Position (TPS), Manifold
- Pressure (MAP) or Mass Air Flow (MAF)
- Staged, Sequential, semi sequential, batch or multipoint injection patterns
- Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
- Connect to a wide range of display dashes and expansion devices via CAN.
- Waterproof case (IP67) (with USB cover fitted)
- 34 position AMP connector
- 6 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
- 6 x Ignition Outputs
- 2 x Dedicated Engine Position inputs with extensive trigger type support
- 2 x Digital Pulsed Inputs
- 5 x Digital Pulsed Outputs
- 2 x Analogue Voltage Inputs
- 3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)
- Internal 3Bar MAP sensor rated up to 200kPa of boost (2Bar/29psi)
- Up to 45 channels of Input & Output (I/O) expansion (via CAN)
- USB Laptop Communication (Windows)
- On-board data logging
- ESP Calibration Software - Intuitive and easy to use
Quickstart guide download: Quickstart guide
Spec sheet download: Spec sheet
Wiring diagram download: Wiring diagram
