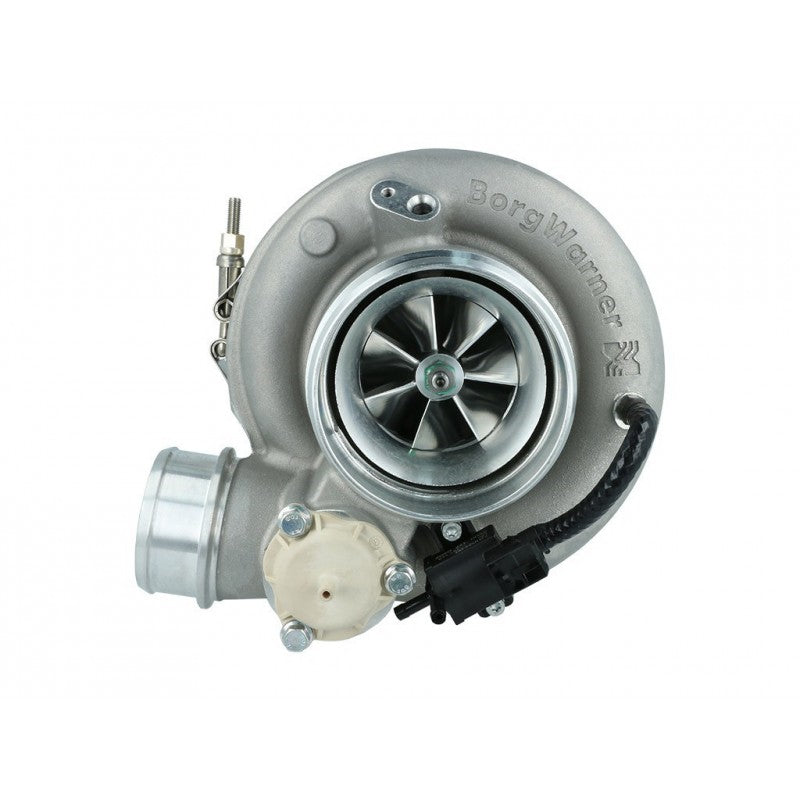

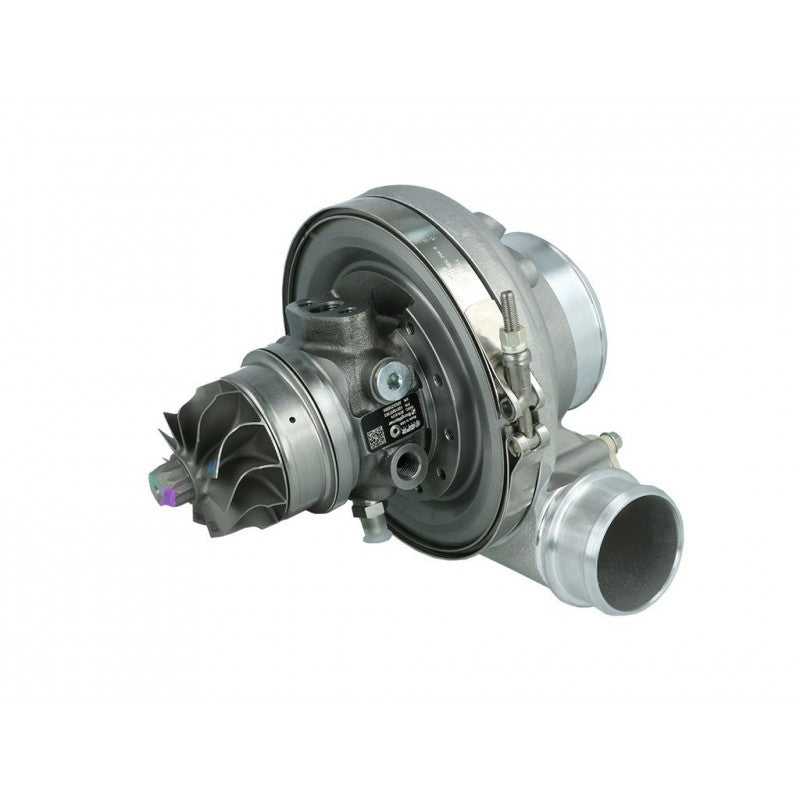

BorgWarner EFR9174 Super Core - Iron
Borg Warner EFR 9174 Super Core Assembly
- Iron Bearing Housing
- B2 Turbo Frame Size
- 68mm Compressor Inducer Dia.
- 91mm Compressor Wheel O.D.
- 74mm Turbine Wheel O.D.
- Straight Compressor Outlet
This unit, p/n 156-12919097002, is equipped with the iron bearing housing. Each Super Core includes a fully assembled bearing and rotor system along with a complete compressor stage. This includes the compressor stage accessories such as the CRV (Integrated Compressor Recirculation Valve) and BCSV (Boost Control Solenoid Valve) assembled to the comp cover. Not included is the turbine housing assembly, turbine housing clamp plate hardware, or wastegate parts. To build a complete turbo from scratch, the Super Core must be mated with a turbine housing, wastegate bracket kit, wastegate canister, and hardware/installation kit
Super Core Assembly Does NOT Include:
- Turbine Housing
- Assembly Clamp Plate Hardware
- Wastegate Parts
Pairs well with
BorgWarner EFR9174 Super Core - Iron
