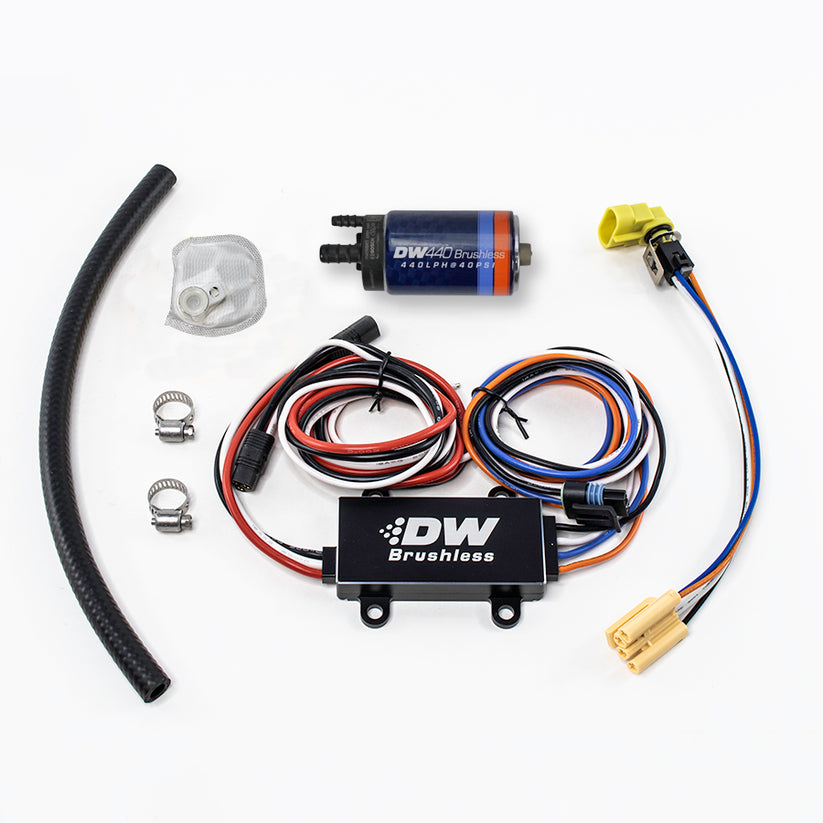

Deatschwerks DW440 Universal Brushless Fuel Pump With 2-Speed Controller

DW440 Brushless In-Tank Pump

The DW440 brings brushless pump technology INTO the fuel tank.  With a total height of only 4 inches (103mm), it is the only highflow aftermarket brushless pump that is easily retro-fitted into an OE pump module.  Brushless technology reduces friction and heat, increases effeciency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.

• Flow 440LPH at 40psi, 13.8v, 620LPH at 40psi, 20v
• Compact size is optimized for in-tank use
• Universal bulkhead harness and fitment kit included
• Compatible with all fuels including methanol and e100
• No brushes + No commutator = Ultimate Durability

Fuel Pump Technical Data Sheet can be found HERE

DW Brushless Pump Controller

The DW Brushless Pump Controller is included with the DW440, 650iL, 810 fuel pump kits. This controller accepts an 8-26v DC input and creates a digital signal to allow effecient and precise speed and torque control of the pump. The controller is available in 3 configurations: C102 (Dual Speed 440), C103 (PWM Controlled), and C105 (Dual Speed 650iL/810)

• Optimized for use with the DW brushless pumps
• Variable timing for optimized torque and speed
• Designed for compatibility with voltage boosters
• Bulkhead wiring kit included for in-module retrofit
• Digital thermal protection

Brushless Pump Controller Technical Data Sheet can be found HERE

Part # 9-441-C102-0900
