Davies Craig Digital Gauge Thermatic Fan & EWP Switch Kit - DC-0500

This part number supersedes the old part number 0455.

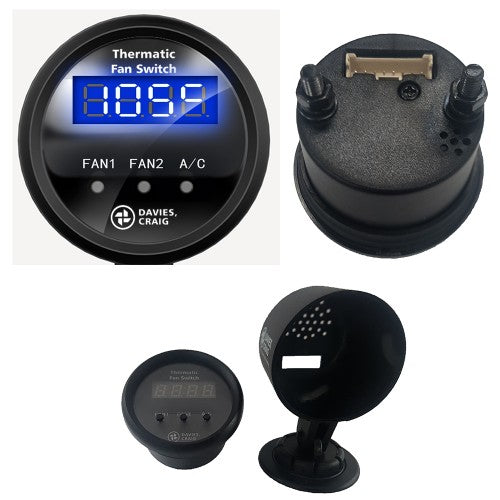

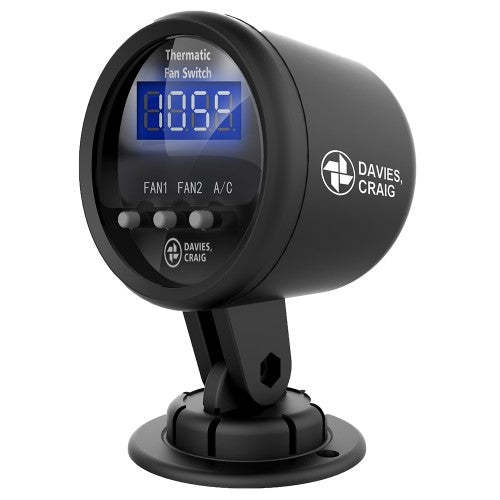

A bright, attractive, compact high visibility 52mm round gauge with LED digital display for mounting in the driver’s compartment!

Automatically activates single or twin fans or a fan and Electric Water Pump at your set / targeted temperature when extra cooling is required. It can also detect transmission fluid temperature.

It senses air temperature as it passes through the radiator with the sensor placed in the radiator fin section or alternatively the sensor can also be placed directly into the coolant system in combination with a Temperature Sensor Adaptor Kit (Part 0409).

The kit is sold in 12 Volt configuration. and for 24 Volt application: 2 x 24V Relays required, sold separately (Part #10534)

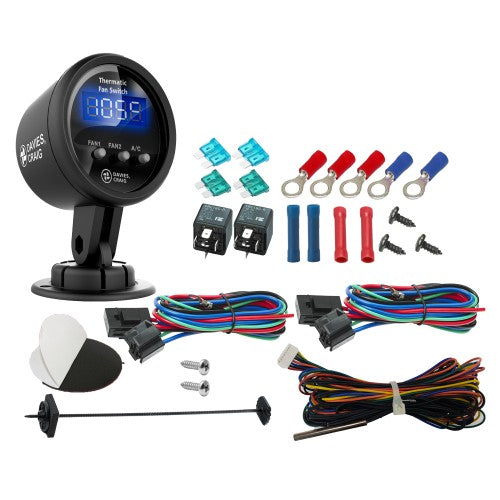

KIT CONTENTS
Digital Thermatic Fan Switch - 52mm Gauge     1
Digital Gauge Stand     1
Gauge Thermatic Fan Switch - Wiring Loom     1
Wiring Harness     2
Fuse 15 AMP     2
Fuse 30 AMP     2
Scotchlok Terminal     6
Relay - 12V 40 Amp 5 Pin     2
Connector (Yellow)     2
Yellow 6mm Eye Crimp Terminal     2
Screw - Self Tapping 8X3/8     3
Eye Crimp Terminal - 5mm     2
Temp Probe Mounting Kit     1
Installation Instructions     1

AIR TEMPERATURE APPLICATION
The kit is set up for air temperature sensor application. For water / coolant applications, please read below.

It senses air temperature as it passes through the radiator and has an adjustable temperature range of 5ºC to 110ºC (41ºF to 230ºF).
The Temperature Sensor is placed in the radiator fin section as close to the hot coolant inlet as possible, no need to cut hoses or can be placed directly into the coolant system.

WATER / COOLANT APPLICATION
Part #0500 sensor can also be placed directly into the coolant system.
Use #0465 for OE style 1/4 “NPT port install
Use #0409 for radiator hose install

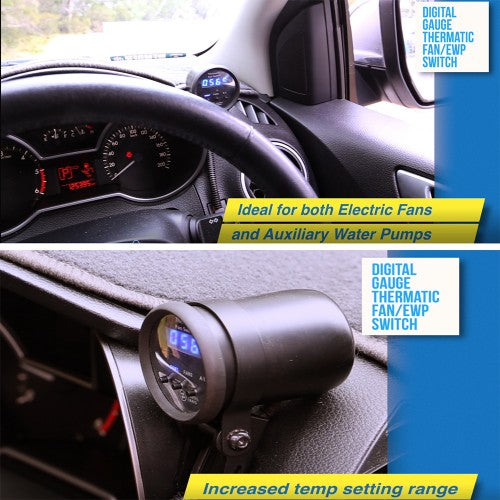

The DIGITAL GAUGE must be mounted inside the vehicle’s driving compartment for easy reading and quick adjustment.

Convenient push-button control allows you to accurately set/target temperature for automatic activation of the Thermatic® Fan #1 and Fan #2 at independent temperatures when extra cooling is required.
This flexible switch can also be used to activate an Electric Water Pump and/or an Electric Booster Pump.

This new DIGITAL GAUGE THERMATIC® FAN/EWP® SWITCH complements the highly successful #0400 Combo, #0401, #0404 and #0444 Thermatic® Switches
