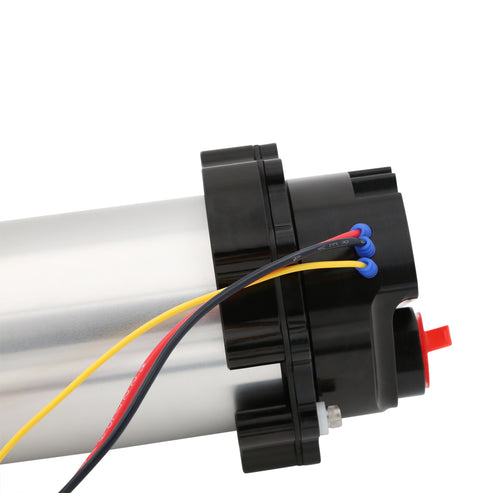

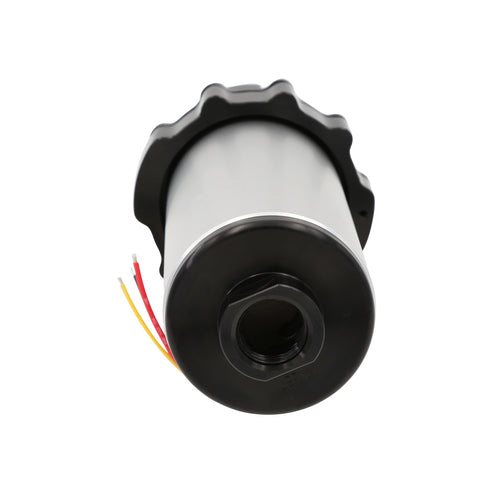

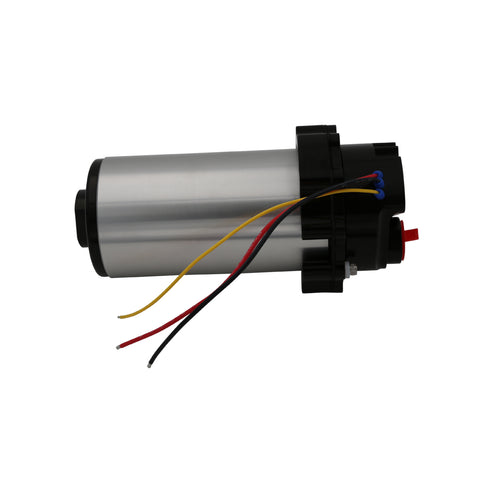

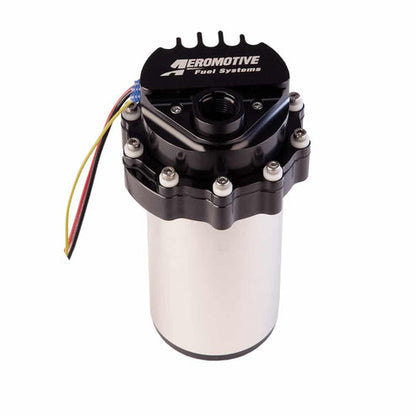

Aeromotive Replacement Brushless In-Tank Fuel Pump Eliminator - 18064
$2,787.41
Replacement Brushless In-Tank Pumps (w/o Fuel Cell Pickup)
- Lighter than the traditional A1000 and Eliminator pumps.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- Quieter than the traditional Eliminator Pump.
- ORB-10 outlet port.
- Requires straight 12-VDC to 16-VDC power supply.
- Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range. If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
Specifications
| #18064 - Eliminator | |
|---|---|
| Maximum Flow Rating | 105 |
| Maximum Pressure | 90 |
| Fuel Type | Gas |
| Universal Or Specific Fit | Universal |
| Internal Or External | Internal |
| Pump Design | G-Rotor |
| Fuel Delivery Type | Fuel Injection |
| Inlet Type | ORB-10 |
| Inlet Outside Diameter | ORB-10 |
| Outlet Type | ORB-10 |
| Outlet Outside Diameter | ORB-10 |
| Maximum Current Draw | 8 |
| Voltage | 12 |
| Negative Ground | Yes |
| Wire Quantity | 3 |
| Wiring Harness Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Lead Wire |
| Strainer Included | No |
| Fuel Sending Unit Included | No |
| Regulator Included | No |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Seal And Lock Ring Included | No |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
