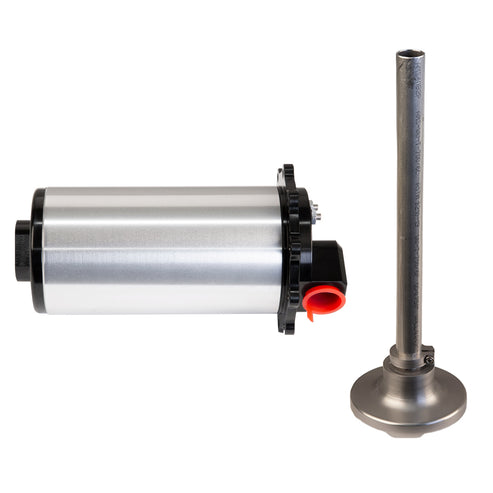

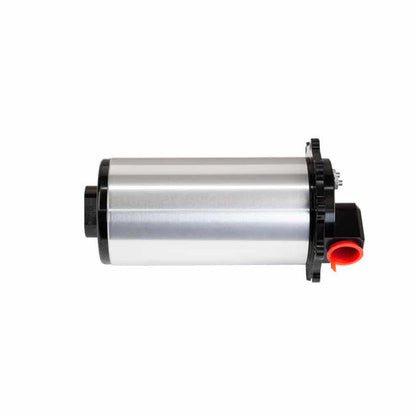

Aeromotive Eliminator Brushless In-Tank Fuel Pump with 90 Degree Outlet & True Variable Speed Controller - 19320

• The Eliminator performance you expect and more:


  • Fuel Injected Engines:
    up to 1900 FWHP – naturally-aspirated
    up to 1400 FWHP – forced air induction


  • Carbureted Engines:
    up to 2300 FWHP – naturally-aspirated
    up to 1700 FWHP – forced air induction




• E85 Compatible, reduce max FWHP by 30%

• Lighter than the traditional Eliminator pump.

• Reduced current draw at higher, EFI pressures.

• Extended service life in methanol and ethanol.

• Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.

• Quieter than the traditional Eliminator Pump.

• ORB-10 outlet port.

• Requires straight 12-VDC to the 16-VDC power supply.
  • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.

• Not compatible with pulse-modulated systems or fuel pump speed controllers.

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

EFI Rated flow of 1,000 lbs./hr. @ 45 psi, 13.5 volts
Carb Rated Flow of 1,300 lbs./hr. @ 9 psi, 13.5 volts

Installation Instruction can be found HERE
